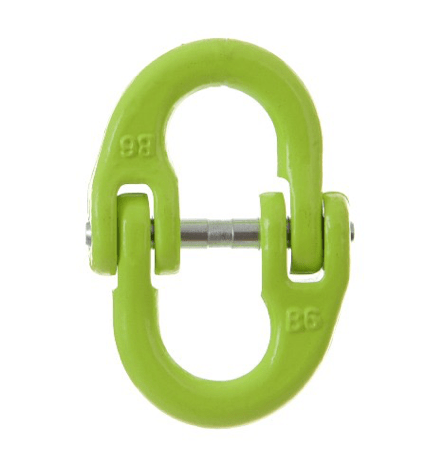

Python Component Connector

Material G80 Forged super alloy steel quenched and tempered
Standard to EN818-2
Proof tested to 2.5 times working load limit
Fatigue Tested to 1.5 Working load limit for 20,000 cycles
Ultimate load is 4 times Working Load Limit
100% Magnaflux crack detection

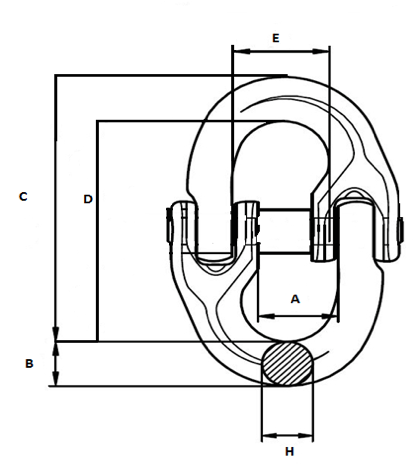

mm	W.L.L	A	B	C	D	E	Weight
	tonnes	(mm)	(mm)	(mm)	(mm)	(mm)	kgs
7mm	2	18	9.5	79.5	60.5	8.5	0.14
10mm	3.15	25	12	90.5	68	11.5	0.3
13mm	5.3	29	15	117	87	15	0.65
16mm	8	34.5	19.8	148	108.4	19.8	1.15

Enquire about this product
