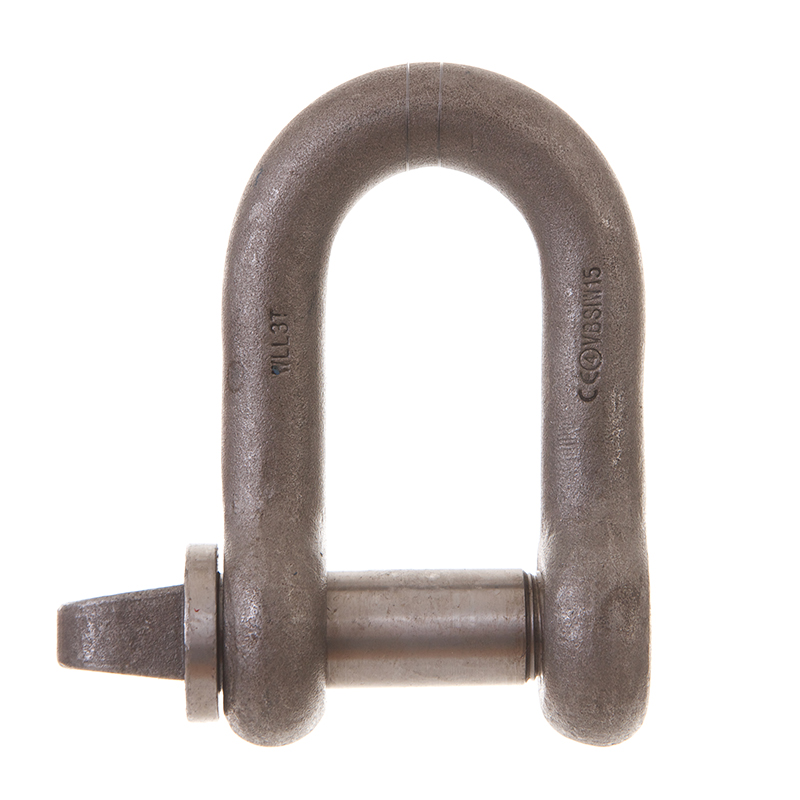

Large Dee Shackle - Type A Screw Pin

  • Material Body and pin high tensile steel
  • Standard BS3032
  • Certificates As standard an EC declaration of conformity is supplied
  • Ultimate load is 5 times working load limit

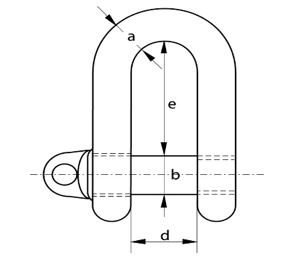

W.L.L a b c d e Weight
tonnes Inches Inches inches Inches Inches kgs
0.75  1/2 5/8 1.1/4 1.1/8 2.1/8 0.35
1.5  5/8  3/4 1.1/2 1.1/4 2.1/2 0.63
2  3/4  7/8 1.3/4 1.1/2 2.7/8 1
3 7/8 1 2 1.3/4 3.1/4 1.54
5 1.1/8 1.1/4 2.1/2 2.1/8 4.1/8 3.11
6 1.1/4 1.3/8 2.3/4 2.3/8 4.1/2 4.33
9.5 1.1/2 1.3/4 3.1/2 2.3/4 5.3/8 8.46
