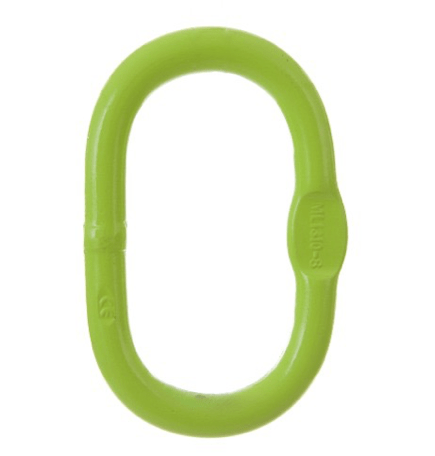

Python Master Link
Python Master Link - Image 2

Python Master Link

Download PDF
  • Ultimate load is 4 times Working Load Limit
  • Material G80 Forged super alloy steel quenched and tempered
  • Standard to EN818-2
  • Proof tested to 2.5 times working load limit
  • Fatigue Tested to 1.5 Working load limit for 20,000 cycles
  • 100% Magnaflux crack detection

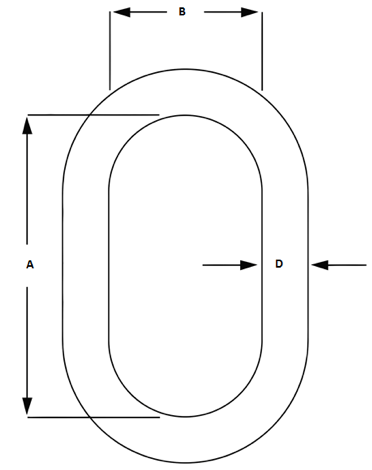

mm W.L.L A B D Weight
tonnes (mm) (mm) (mm) kgs
7mm 1.5 110 60 13 0.34
8mm 2 110 60 16 0.54
10mm 3.15 135 75 18 0.82
13mm 5.3 160 90 22 1.5
16mm 8 180 100 26 2.3
20mm 11.2 200 110 32 3
