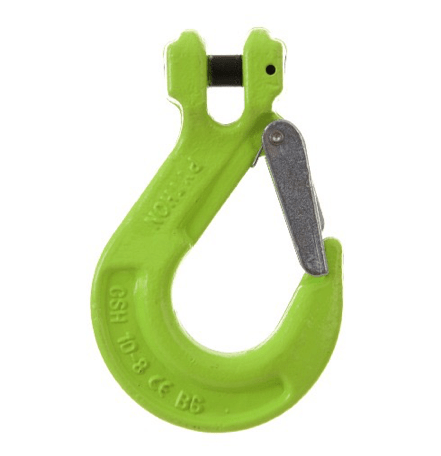

Python Clevis Sling Hook With Latch

Download PDF
  • Material G80 Forged super alloy steel quenched and tempered
  • Standard to EN818-2
  • Proof tested to 2.5 times working load limit
  • Fatigue Tested to 1.5 Working load limit for 20,000 cycles
  • 100% Magnaflux crack detection
  • Ultimate load is 4 times working load limit.

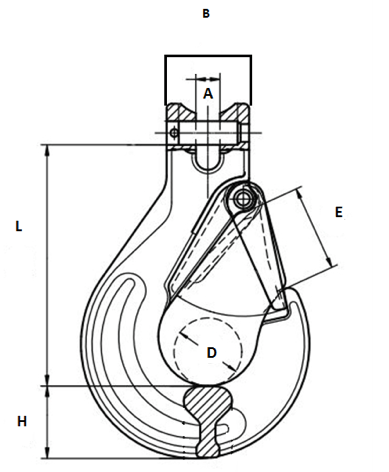

size W.L.L a b d h l e Weight
tonnes (mm) (mm) (mm) (mm) (mm) (mm) kgs
 7/8mm 2 9.5 37 37 32.5 85.5 29 0.48
10mm 3.1 13 49 46 35 104 39 0.95
13mm 5.3 16.5 56.5 56 42.5 128 27 1.8
16mm 8 21.5 70.5 60 54 150 55 3.4
